CDD12/15R-EN

Electric Walkie/Straddle Stacker.The super light Electric stacker with fixed legs and adjustable forks,options straddle leg ,stand on type CTD15K-EN .convenient to adjust the height and easier to go through the rough floor.

Special Features

Capacity:
1000/1200kg
Lift Height:
1600/1950mm
Fork Dimension:
60/180/1070（1150）mm
Request A Quote  Pobierz PDF

Overview

Electric Walkie/Straddle Stacker.

The super light Electric stacker with fixed legs and adjustable forks,options straddle leg ,stand on type CTD15K-EN .convenient to adjust the height and easier to go through the rough floor.


Option with proportional valve(lift and lowering speed are adjustable)



Upper horizontal drive motor to make replace driving wheel easier



4-point design, improve the trucks'stability



Emergency stop,Key switch, Hour meter



Fixed legs with adjustable forks



1) Big size of balance wheel 150mm*65mm
2) Easier to go through the rough floor
3) Convenient to adjust the height

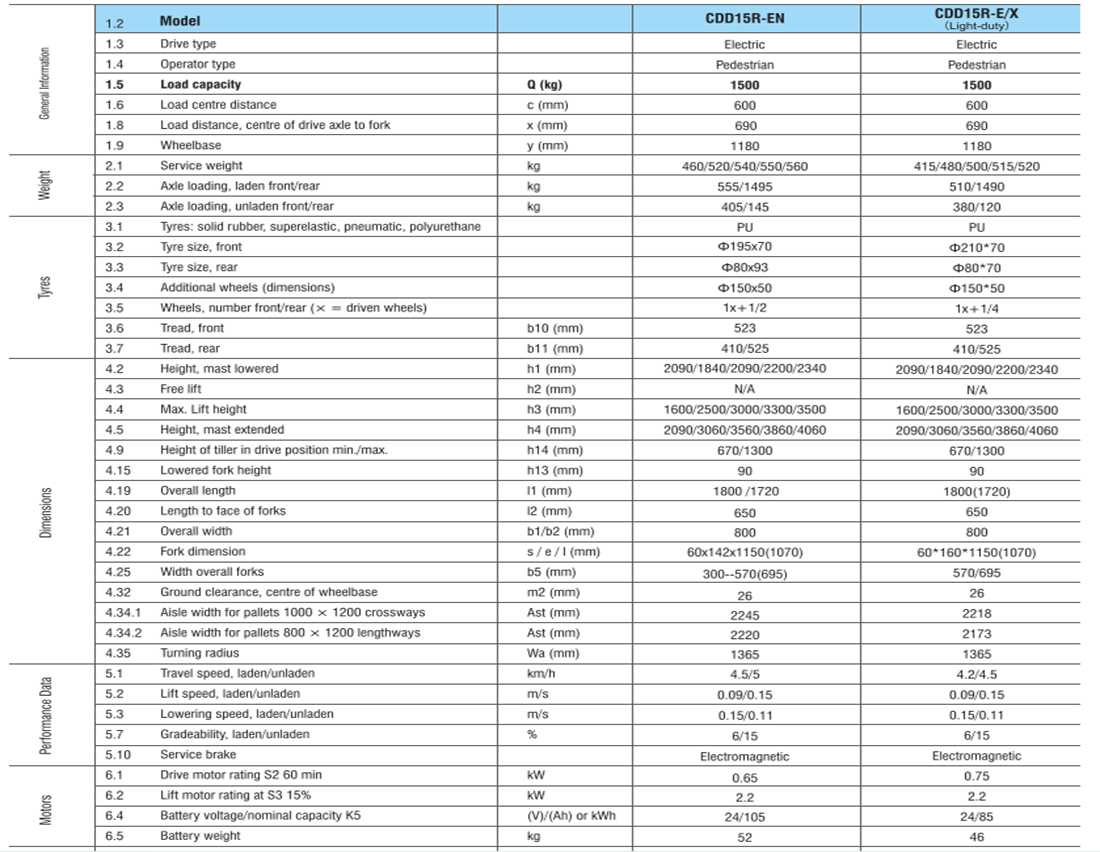

Models and Specifications
